Bosch Magneto Veteran Era

I created a web page about my 1914 Triumph see 1914 Triumph and in the process of learning about it have been on a steep learning curve.
As I find things out I tend to share then via the web so that others have access to them also.

I thought that just a few people would visit this page about magneto's but in the last year over 140,000 people have visited it and downloaded the manuals and literature.
So if you find something useful or download a manual - please can you donate something even just £1 to help cover the costs.
You can make your donation below via secure Paypal or use a card - Your help is much appreciated.




I am often asked who do I recomend to get a magneto serviced/repaired/overhauled.
I have yet to use anyone myself, but the company that I always hear the very best comments about is Steve Marks and The Magneto Guys company - http://www.themagnetoguys.co.uk/Home.php

The page contains a growing collection of Bosch Magneto technical information.

This page contains the technical Bosch literature for the following Bosch Magnetos:

Bosch Magneto ZE1 (German)

Bosch Magneto DA1 (English)

Bosch Magneto DA2 (English) in colour!

Bosch Magneto ZA1 (English)

Bosch Magneto AR31 & AR32 (English)

Bosch Magneto BAVf BEVf BA2f BE2f (English)

Bosch Magneto FC1A (USA Edition)

Bosch Magneto FF1 FF2 FFV (USA Edition)

Bosch Magento FF4A FF6A FU4 FU6 FR4 (German)

Bosch Magneto DU4 (English)

Bosch Magneto DR4 (English)

Bosch Magneto DF4 (English)

This page is about Bosch magneto's. Robert Bosch's Magneto transformed motoring as his magneto allowed the creation of a reliable spark.
Some of the information on this page has been very kindly provided by Bosch directly themselves. If it is then you will find (B) to indicate the source.

Below is a list of models produced and when.

Bosch Magneto models

To help you date your Bosch Magneto - the serial numbers by year are below.

Bosch Magneto Production Serial numbers

To help you understand the specification, the information below may help.

Bosch Magneto Specifications

To clarify matters even further I have been able to get access to information kindly provided by the Bosch Historical archive and this lists the different magneto types and when they first came to production. (B)

Bosch Magneto production models dates

The advert below would seem to counter the above table as it seems to imply that the DA arrived in 1911.

Bosch Magneto 1911

As the inside of a magneto is a mystery to most of us, I have included below some lovely colour drawings of an early (1902 onwards) Bosch DA2 magneto.

Bosch DA2 Magneto

Bosch DA2 Magneto

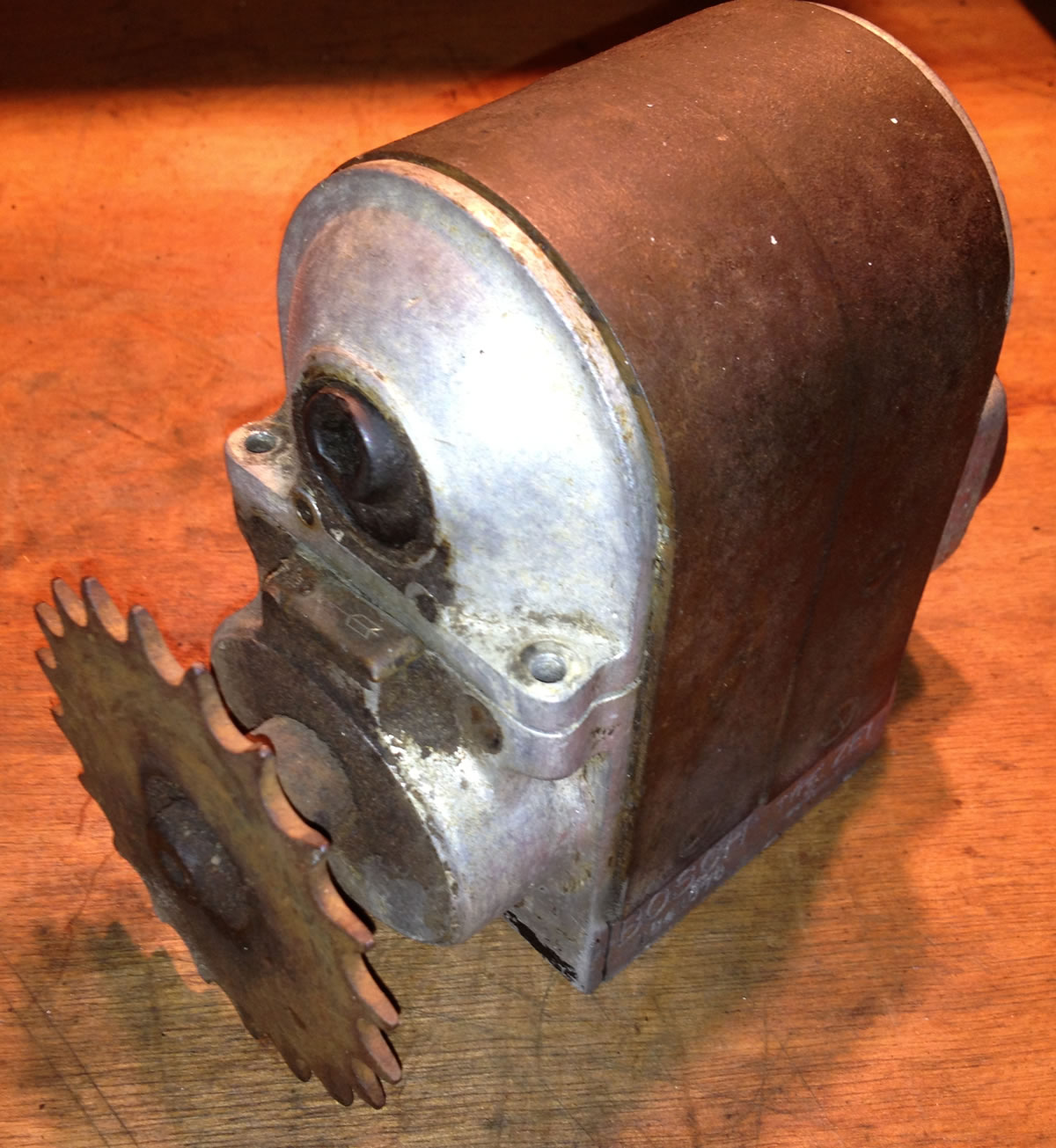

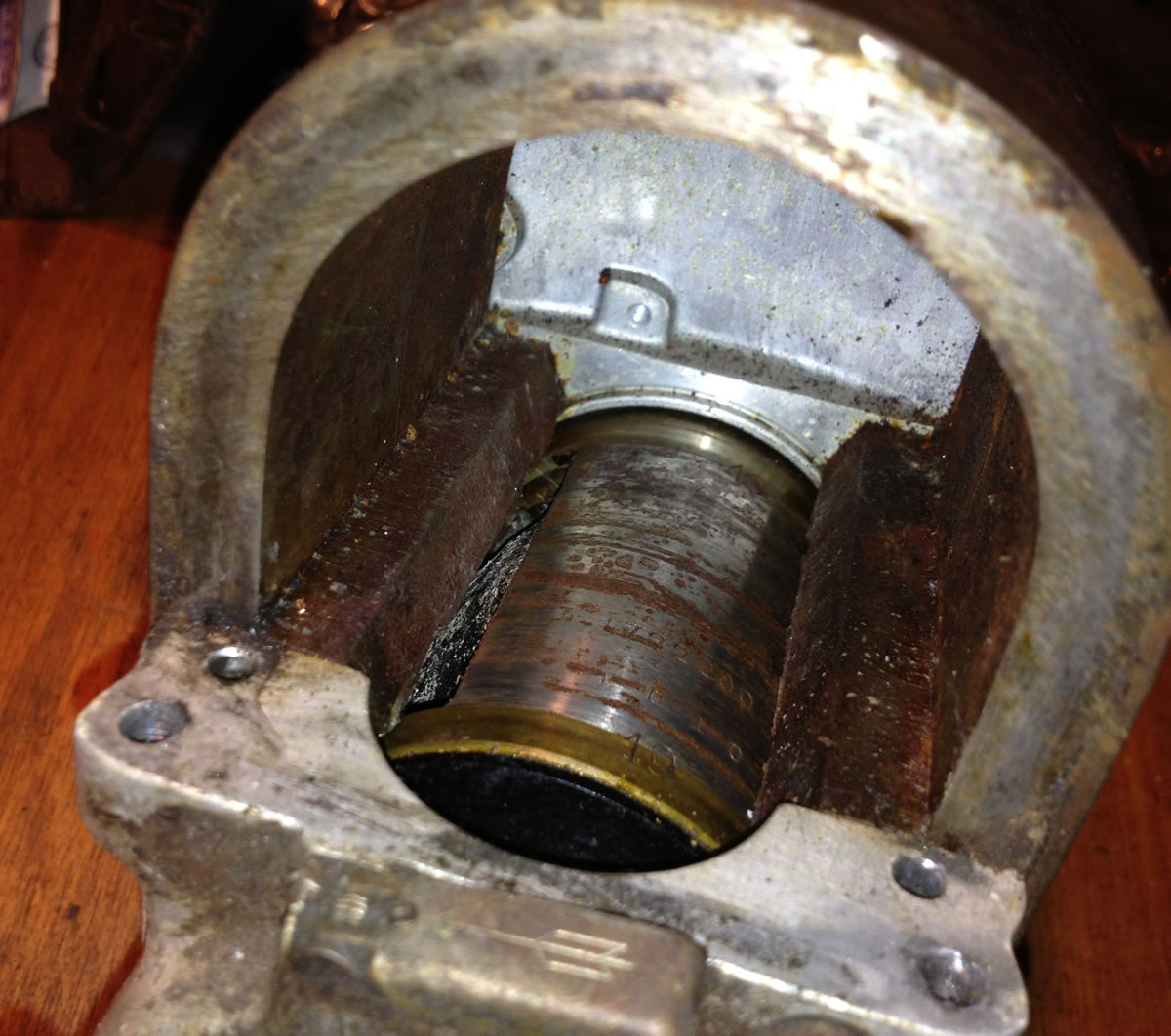

I have added a few pictures below of a Bosch ZE1 magneto that I have bought as a spare and hope to get tested/renovated in the coming months. The serial shows that it was made in 1915.

Bosch Magneto ZE1

Bosch Magneto ZE1

Bosch Magneto ZE1

Bosch Magneto ZE1

Bosch Magneto ZE1

If you have any manuals for Magneto's of the Veteran era then I would really appreciate a copy so that I can add it to this page. Also please do add any links to this page as it will help others find this information. My email is paulg@go-faster.com

I believe the Bosch ZE1 was fitted to Triumphs from 1912 to 1914. I think the Bosch DA2 was fitted to Triumphs 1906 to 1909 - anyone know any more? I get this from the 1914 Triumph Repair Catalogue, see http://www.go-faster.com/1914TriumphRepairPartsManual.html

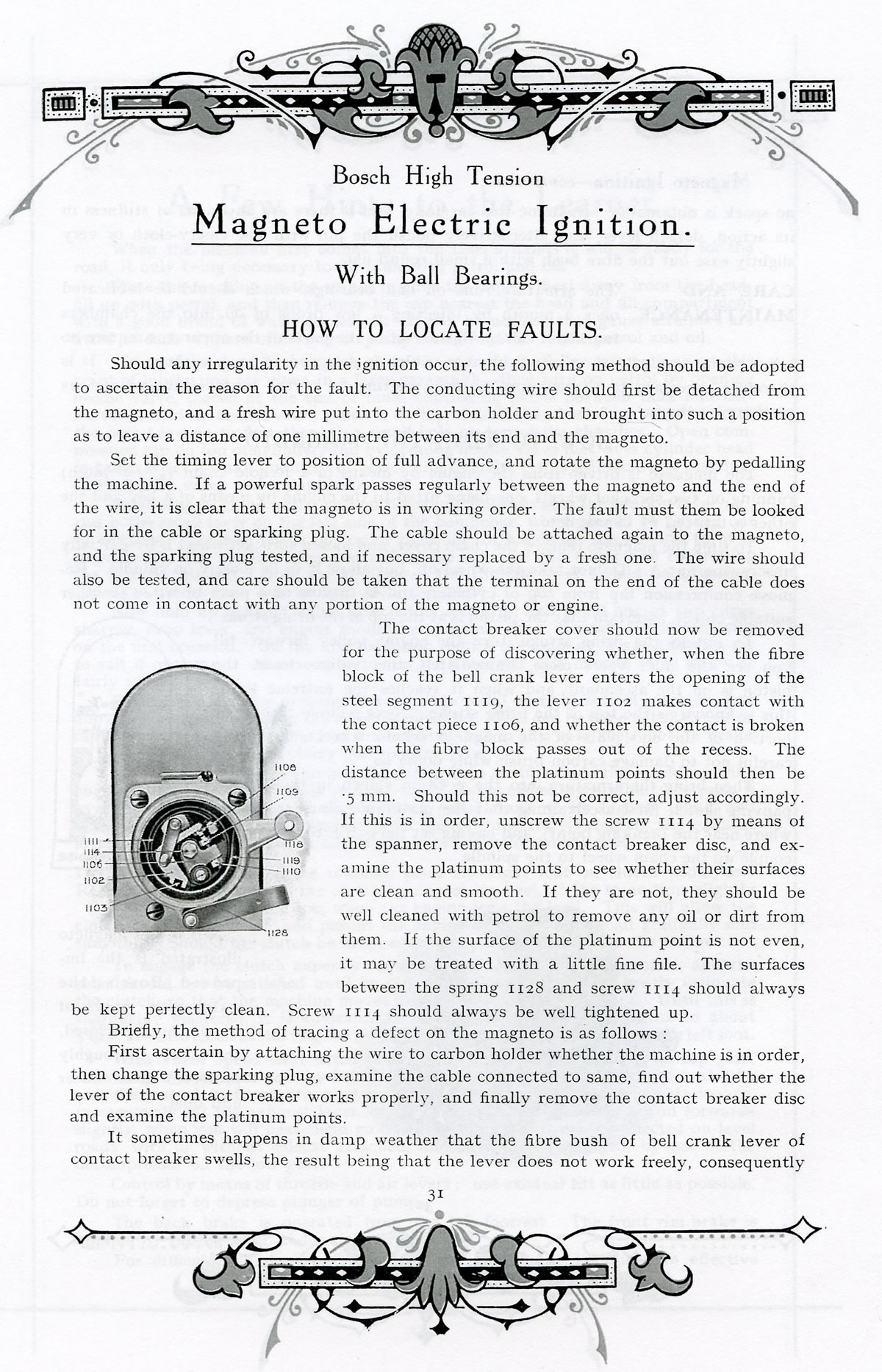

How to set the timing on a Bosch Magneto

The following will be useful to anyone trying to set the timing on a ZE1 and probably a useful guide for other models and makes. It comes from a 1914 Triumph publication.

Bosch ZE1 magneto timing

Bosch ZE1 magneto timing

Bosch ZE1 magneto timing

And below is a another period (Model H) short guide to setting the ignition timing.



Bosch Magneto ZE1 Literature (B)

Bosch ZE1 Tech Spec Page Cover german

Bosch ZE1

Bosch ZE1

Bosch ZE1

Bosch ZE1

Bosch ZE1

Bosch ZE1

Bosch ZE1

Bosch ZE1



Bosch DA1 Literature

Bosch DA2

Bosch DA2

Bosch DA2

Bosch DA2

Bosch DA2

Bosch DA2

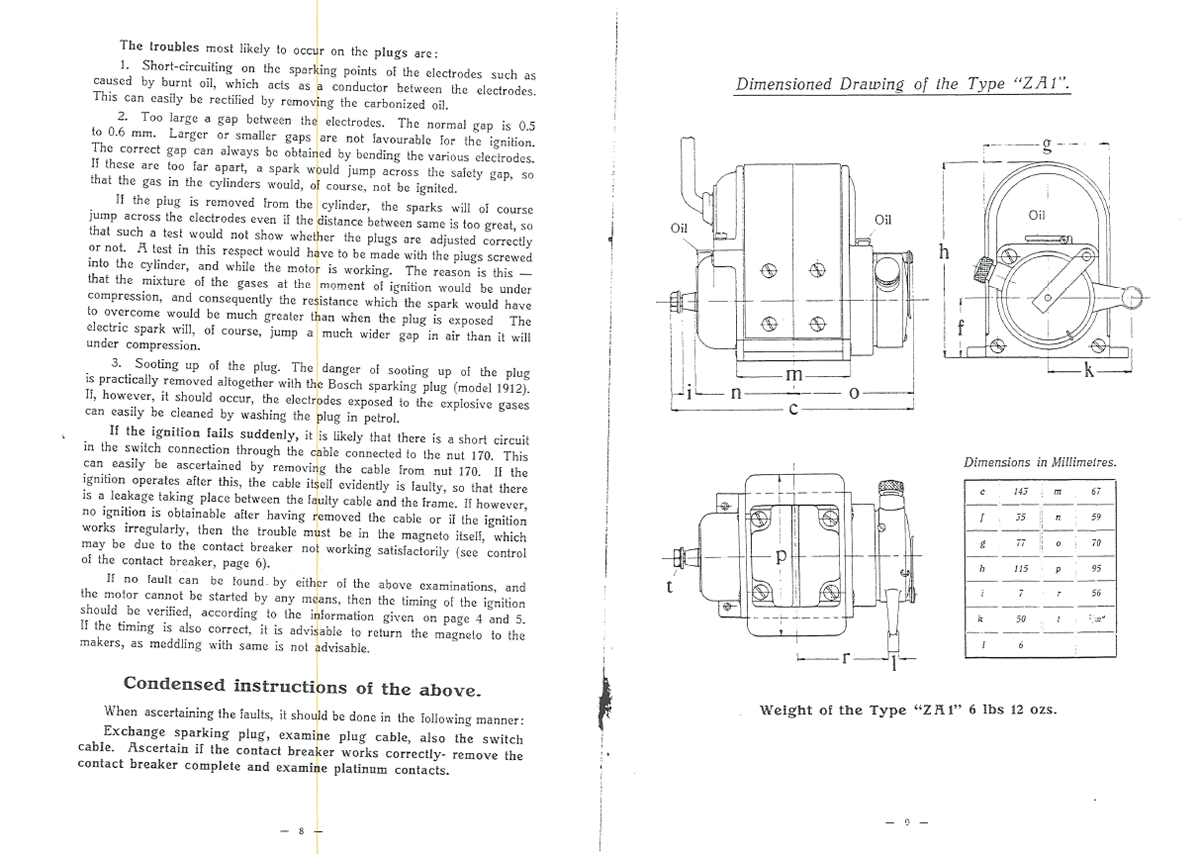

Bosch ZA1 Literature

Bosch ZA1

Bosch ZA1

Bosch ZA1

Bosch ZA1

Bosch ZA1

Bosch ZA1

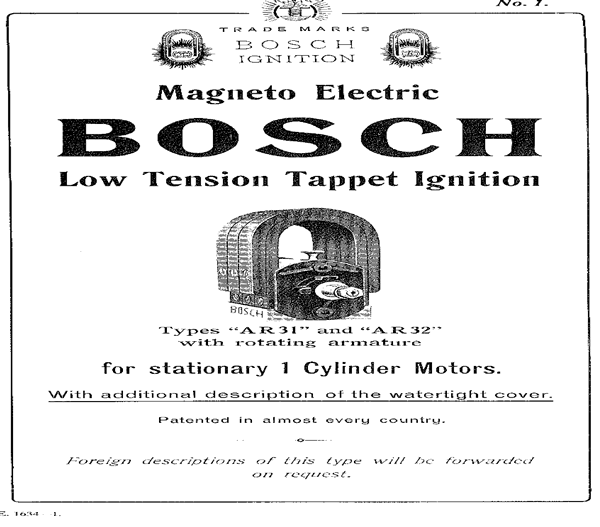

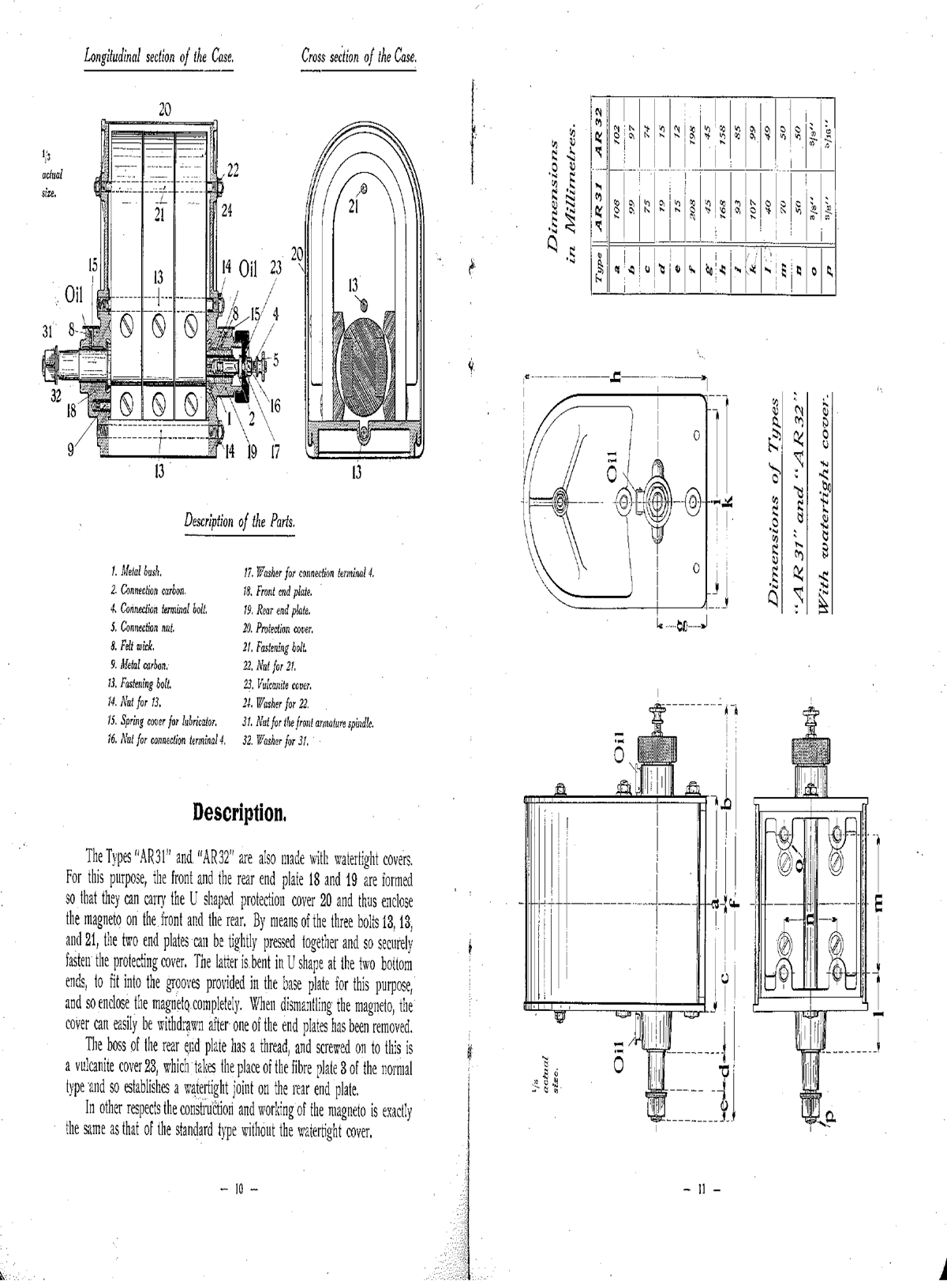

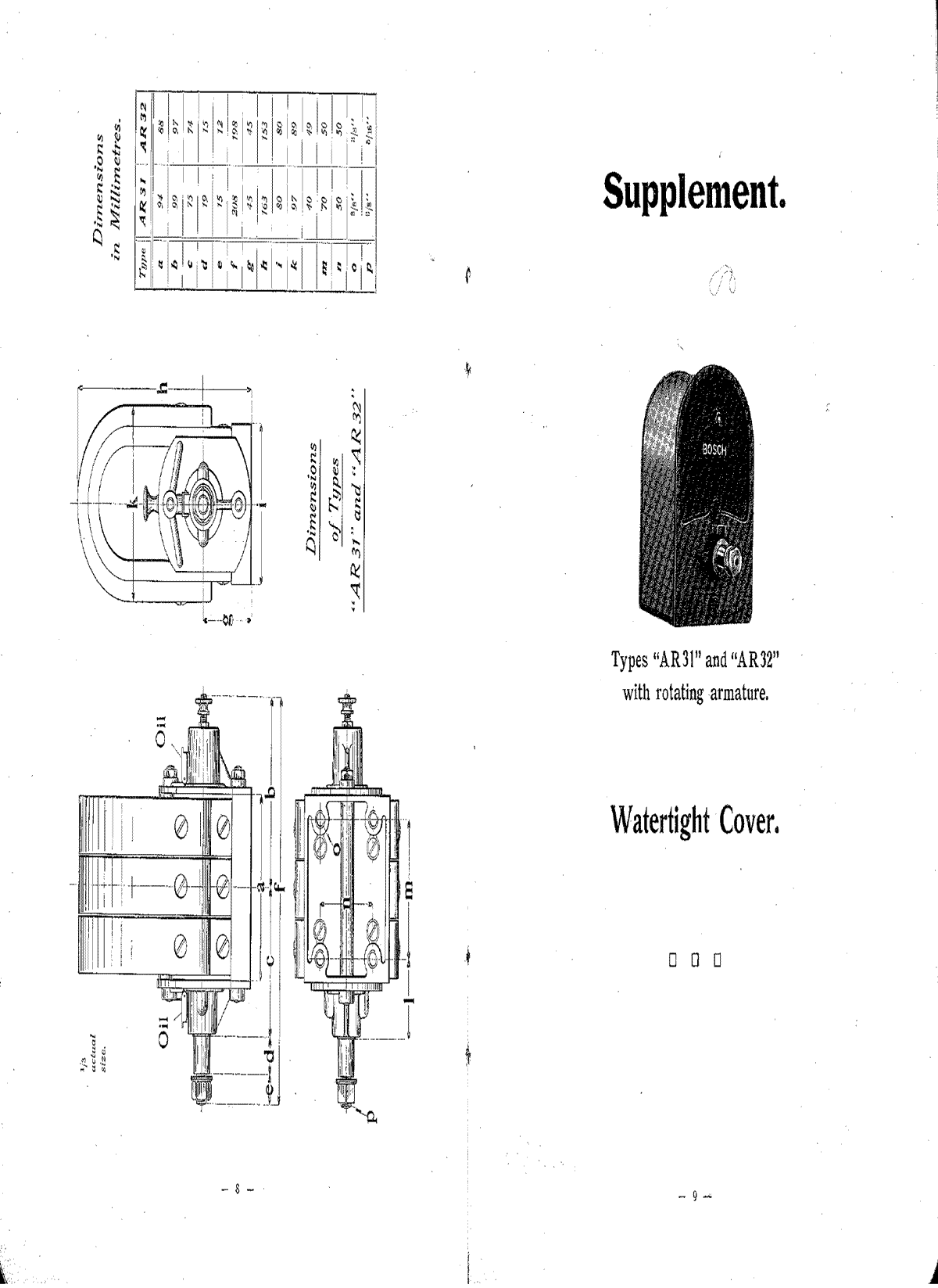

Bosch Magneto AR31 and AR32 Literature (B)

Bosch AR31 AR32

Bosch AR31 AR32

Bosch AR31 AR32

Bosch AR31 AR32

Bosch AR31 AR32

Bosch AR31 AR32

Bosch AR31 AR32

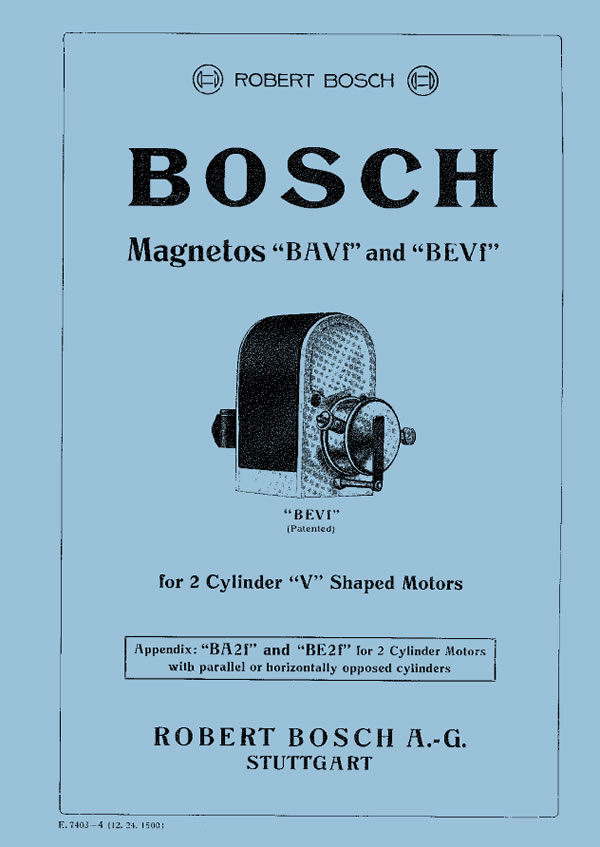

Bosch Magneto BEVf BAVf BA2f BE2f (B)

Bosch Magneto BA BE

Bosch Magneto BA BE

Bosch Magneto BA BE

Bosch Magneto BA BE

Bosch Magneto BA BE

Bosch Magneto FC1A (B)

Bosch Magneto FC1A

Bosch Magneto FC1A

Bosch Magneto FC1A

Bosch Magneto FC1A

Bosch Magneto FC1A

Bosch Magneto FC1A

Bosch Magneto FC1A

Bosch Magneto FC1A

Bosch Magneto FF1 FF2 FFV (USA Edition) (B)

Bosch Magneto FF1 FF2 FFV

Bosch Magneto FF1 FF2 FFV

Bosch Magneto FF1 FF2 FFV

Bosch Magneto FF1 FF2 FFV

Bosch Magneto FF1 FF2 FFV

Bosch Magneto FF1 FF2 FFV

Bosch Magneto FF1 FF2 FFV

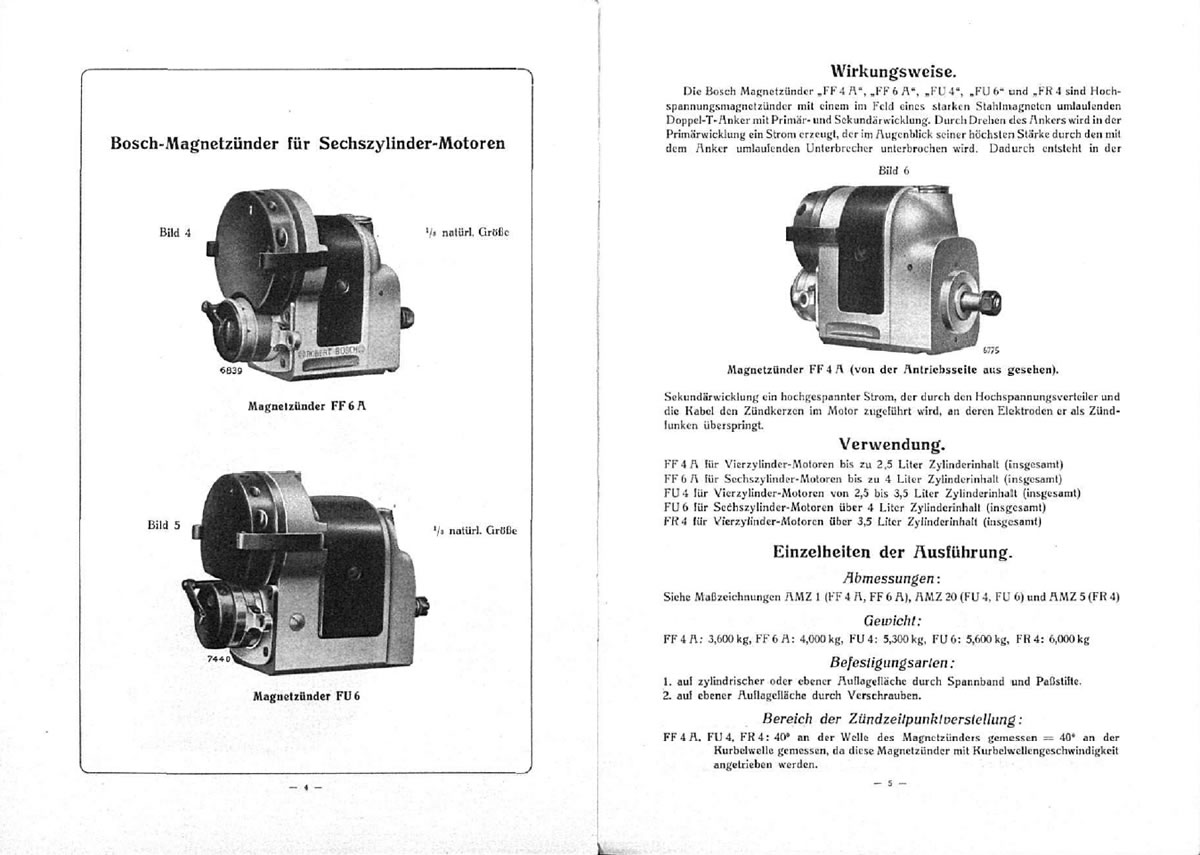

Bosch Magento FF4A FF6A FU4 FU6 FR4 (German)

Bosch Magneto FF4A FF6A FU4 FU6 FR4

Bosch Magneto FF4A FF6A FU4 FU6 FR4

Bosch Magneto FF4A FF6A FU4 FU6 FR4

Bosch Magneto FF4A FF6A FU4 FU6 FR4

Bosch Magneto FF4A FF6A FU4 FU6 FR4

Bosch Magneto FF4A FF6A FU4 FU6 FR4

Bosch Magneto FF4A FF6A FU4 FU6 FR4

Bosch Magneto FF4A FF6A FU4 FU6 FR4

Bosch Magneto FF4A FF6A FU4 FU6 FR4

Bosch Magneto FF4A FF6A FU4 FU6 FR4

Bosch Magneto FF4A FF6A FU4 FU6 FR4



The following technical literature is displayed as PDF files and you can scroll through them and save them to your computer.

Bosch DR4 (B)



Bosch DF4 (B)



Bosch DU4 (B)

This is the end of the Bosch literature that I have gathered so far.

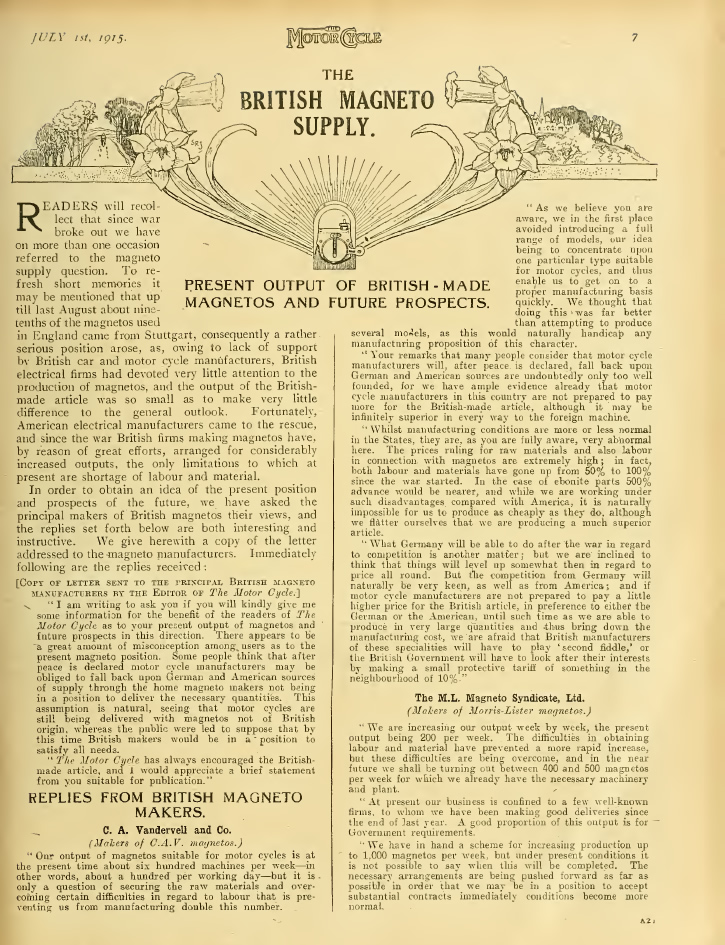

I have been asked what happened to the supply of magnetos during the First War as at that time Bosch were the main global supplier. I have found the following article which explains matters.

WW1 magnetos

WW1 magnetos




If you are looking for further information on a magneto not featured here then please do email me and I will do what I can to help.
My email is here

If you are looking for information on old Marelli magneto's, then visit this page to contact their archive - http://www.magnetimarelli.com/company/history
